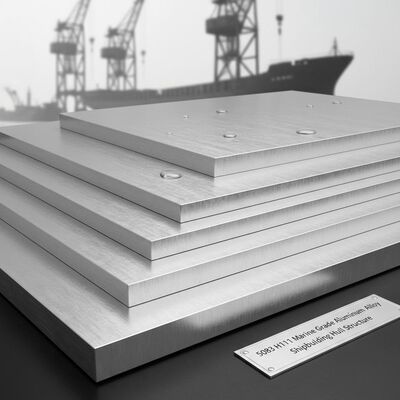

5083 H116 Marine Grade Aluminum Alloy Plate 3mm-200mm Thickness for Shipbuilding Hull Structure Applications
| Menşe yeri | Shandong, Çin |
|---|---|
| Marka adı | Hongtu |
| Sertifika | ISO 9001:2015, SGS, DNV, ABS, BV, LR (upon request) |
| Model numarası | 5083-H116 |
| Min sipariş miktarı | 1000 kg |
| Fiyat | USD 3.0-4.5 / kg |
| Ambalaj bilgileri | Pas önleyici kağıt serpiştirilmiş, neme dayanıklı PE film, çelik çemberli ihracat sınıfı fümigasyonl |
| Teslim süresi | Stok için 5-10 iş günü, üretim için 15-30 gün |
| Ödeme koşulları | T/T, L/C görüşte |
| Yetenek temini | Aylık 2000 Ton |
Ürün ayrıntıları
| Alaşım | 5083 | Öfke | H116, H321, H112, O |
|---|---|---|---|
| Kalınlık | 3mm - 200mm | Genişlik | 1000mm, 1250mm, 1500mm, 2000mm, 2500mm, 3300mm |
| Uzunluk | 2000mm, 3000mm, 6000mm, 8000mm, 12000mm veya Özelleştirilmiş | Standart | ASTM B928, ASTM B209, EN 485, DNV-OS-C401, MIL-DTL-46027 |
| Yüzey İşlemi | Freze Son İşlemi, Kumlanmış, Astarlanmış | Çekme mukavemeti | ≥ 305 MPa (H116) |
| Verim gücü | ≥ 215 MPa (H116) | Uzama | ≥ %10 (H116) |
| Eksfoliasyon Direnci | Başarılı (ASTM G66/G67 VARLIK) | Başvuru | Gemi Gövdeleri, Üst Yapılar, Açık Deniz Platformları, LNG Tankları, Basınçlı Kaplar |
| Vurgulamak | 5083 H116 Shipbuilding Aluminum Plate,Marine Hull Structure Alloy 5083,Seawater Resistant 5083 H116 Sheet |
||
Ürün Açıklaması
5083 H116 Marine Grade Aluminum Alloy Plate 3mm-200mm Thickness for Shipbuilding Hull Structure Applications
5083 H116 Marine Grade Aluminum Alloy Plate for Shipbuilding and Offshore Structures
The 5083 H116 aluminum alloy plate is the premier material for marine and offshore applications, engineered to deliver maximum corrosion resistance in aggressive seawater environments. With the highest strength among non-heat-treatable alloys and superior weldability, it is the material of choice for ship hulls, superyacht structures, offshore platforms and cryogenic storage tanks. The H116 temper is specifically designed to resist exfoliation and intergranular corrosion in marine service.
Key Features
- Premium Marine Alloy: 4.0-4.9% magnesium content delivers the highest strength and best corrosion resistance in the 5000 series
- H116 Special Temper: Specifically processed to provide immunity to exfoliation corrosion and intergranular attack in saltwater service
- Classification Society Approved: Certified by DNV, ABS, BV and LR to meet shipbuilding and offshore structure requirements
- Exceptional Weldability: Excellent TIG and MIG welding characteristics with 5356 filler maintaining joint strength and corrosion resistance
- Cryogenic Performance: Retains toughness and ductility at temperatures as low as -196°C for LNG containment systems
- Stress Corrosion Cracking Resistant: Specifically processed grain structure eliminates sensitization to SCC in marine environments
Chemical Composition (Weight %)
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| Min | - | - | - | 0.40 | 4.00 | 0.05 | - | - | Remainder |
| Max | 0.40 | 0.40 | 0.10 | 1.00 | 4.90 | 0.25 | 0.25 | 0.15 |
Mechanical Properties (H116 Temper)
| Property | Value (Thickness ≤ 50mm) |
|---|---|
| Tensile Strength | ≥ 305 MPa |
| Yield Strength | ≥ 215 MPa |
| Elongation | ≥ 10% |
| Hardness (Brinell) | 75 HB |
| Density | 2.66 g/cm³ |
| Exfoliation Corrosion | P (Pass) per ASTM G66 |
| Intergranular Corrosion | ≤ 150 μm mass loss per ASTM G67 |
Available Dimensions
| Parameter | Range |
|---|---|
| Thickness | 3mm - 200mm |
| Width | 1000mm - 3300mm |
| Length | 2000mm - 12000mm or Custom |
| Temper | H116, H321, H112, O |
| Ultrasonic Testing | EN 10160 Class A / ASTM B594 Class AA available |
Applications
- Fast ferry and patrol boat hulls and superstructures
- Luxury yacht and superyacht construction
- Offshore oil and gas platform topside modules
- LNG carrier spherical and membrane tanks
- Naval and coast guard vessel structures
- Cryogenic pressure vessels and heat exchangers
- Subsea and deepwater equipment structures
- Chemical tanker cargo tanks
Our Advantages
- Classification Society Certification: DNV, ABS, BV and LR material certification upon request with full traceability
- Ultrasonic Testing Available: 100% UT inspection per EN 10160 Class A or ASTM B594 Class AA standards
- Intergranular Corrosion Testing: ASTM G67 testing reports provided for each production lot
- Marine Industry Experience: 15+ years supplying aluminum plates to shipyards and offshore fabricators worldwide
- Large Dimensions: Single plates available up to 3300mm width and 12000mm length reducing weld seams
- Dedicated Export Packaging: Fumigated wooden pallets with full moisture protection for ocean freight
Contact our marine aluminum specialists today for a comprehensive quotation on 5083 H116 shipbuilding plates. Technical datasheets, mill certificates and classification society approvals provided with every order.
