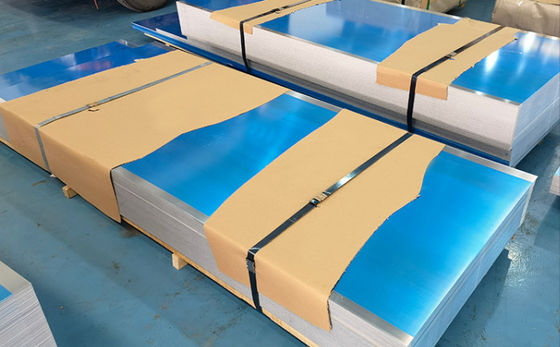

7075 T6 Aerospace Grade Aluminum Sheet 3.0mm Zinc Magnesium Copper Alloy High Strength for Aircraft Wing Components
| Menşe yeri | Shandong, Çin |
|---|---|
| Marka adı | CHALCO |
| Sertifika | ISO 9001:2015, ASTM B209, AMS 4045, SAE AMS-QQ-A-250/12 |
| Model numarası | AL7075-T6-3.0 |
| Min sipariş miktarı | 1 Ton |
| Fiyat | USD 3850-4450 / Ton |
| Ambalaj bilgileri | Korozyon önleyici yağ kaplama, her iki tarafta PE koruyucu film, çelik şeritli güçlendirilmiş ahşap |
| Teslim süresi | Sipariş onayından sonra 15-25 iş günü |
| Ödeme koşulları | T/T, L/C görüşte |
| Yetenek temini | Aylık 3000 Ton |
Ürün ayrıntıları
| Alaşım | 7075 | Öfke | T6 (Çözelti Isıl İşlemli Yapay Yaşlandırma) |
|---|---|---|---|
| Kalınlık | 3,0 mm | Genişlik | 1219mm / 1500mm |
| Uzunluk | 2438mm / 3000mm / 4000mm | Çinko içeriği | %5,1-6,1 |
| Magnezyum İçeriği | %2,1-2,9 | Çekme mukavemeti | ≥540 MPa |
| Verim gücü | ≥470 MPa | Sertlik | ≥150 HB |
| Vurgulamak | Aerospace Grade Zinc Alloy,Ultra High Strength 7075 Sheet,3.0mm Aircraft Structural Wing Plate |
||
Ürün Açıklaması
7075 T6 Aerospace Grade Aluminum Sheet 3.0mm Zinc Magnesium Copper Alloy High Strength for Aircraft Wing Components
Ultra-High Strength at One-Third the Weight of Steel
Our 7075 T6 Aerospace Grade Aluminum Sheet is the highest strength aluminum alloy commercially available, with tensile strength exceeding 540 MPa — approaching that of structural steel at only one-third the weight. Engineered with a zinc-magnesium-copper alloy system and fully heat treated to T6 temper, this 3.0mm sheet is the definitive choice for aircraft structural components, wing spars, fuselage frames, and high-stress aerospace applications where failure is not an option.
Key Features
- Ultra-High Strength: ≥540 MPa tensile strength and ≥470 MPa yield strength, comparable to mild structural steel (S235) but at only 34% of the weight
- Zinc-Magnesium-Copper Alloy: 5.1-6.1% Zn, 2.1-2.9% Mg, and 1.2-2.0% Cu provides precipitation hardening capability for maximum mechanical properties
- Full T6 Heat Treatment: Solution treated at 480°C, water quenched, and artificially aged at 120°C for 24 hours for peak strength and hardness
- Excellent Fatigue Properties: Superior fatigue crack growth resistance critical for cyclic loading in aerospace structures
- Outstanding Strength Retention: Maintains significant strength at moderately elevated temperatures up to 120°C continuous service
Applications
- Aircraft wing spars and ribs
- Fuselage frames
- Missile components
- High-performance bicycle frames
- Rock climbing equipment
- Competition firearms receivers
- Molds for plastic injection
- Precision structural components where weight reduction is critical
Quality Assurance
Comprehensive Testing & Certification
Every sheet undergoes electrical conductivity testing (32-36% IACS for T6 verification), ultrasonic C-scan inspection for internal integrity per AMS-STD-2154 Class A, chemical analysis by OES, tensile testing per ASTM E8, and hardness testing. AMS 4045 aerospace specification compliance with full melt-to-product traceability. NADCAP-accredited testing laboratory certification available.
